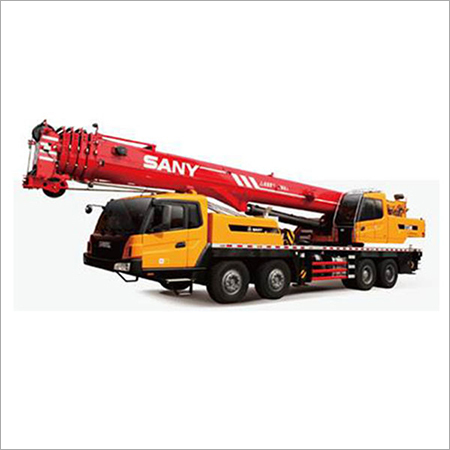

60 Ton Truck Crane

60 Ton Truck Crane

Product Details:

  • Feature Truck Crane
  • Crane Type Truck
  • Application Construction, Railway, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Construction, Railway, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Truck Crane
  • Truck

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior performance

Powerful lifting capacity

The 60 ton truck crane features five-section boom made from strengthened steel and optimized U-shaped section with max.lifting capacity of 60t, full-extended boom length of 43.5m, jib length of 16m, max.lifting height including jib of 60m, which reduces weight and significantly improve safety.

Jib mounting angles are 0°,15°,and 30° to allow quick change-overs between different operating conditions so as to improve working efficiency of the machine.

Adjustable hydraulic system

Hydraulic system load feedback, constant power control, plunger pump and electric controlled main valve featuring high efficiency, low consumption of energy and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.

Excellent travelling performance

Double-axle drive is applied to provide good mobility. Trafficability and comfortableness under the complex road condition is improved with reliable traveling performance; rubber suspension is applied for rear axle to reduce shock and enhance comfort during travelling;

The truck crane's engine has the multimode power output function, which reduces power consumption; the use of tipping over early-warning technology guarantees high stable and safe operation.

Safety and Stability

Intelligent electronic control

Self-developed controller SYMC special for engineering machinery is configured. The CAN-bus fully digital network control technology provides stable control signal, simple harness, and high reliability. It can provide feedback on data and monitor the working condition of whole crane in real-time.

The load moment limiter

The 60 ton truck crane is configured with comprehensive intelligent protection system that achieves precision within 3%. The comprehensive logic and interlock control system ensures safe and reliable operation.

Max. lifting capacity


Overall length

13700 mm

Overall width

2750 mm

Overall height

3750 mm

Axle distance-1,2

1450 mm

Axle distance-2,3

4200 mm

Axle distance-3,4

1350 mm

Overall weight

42000 kg

Front axle load

16000 kg

Rear axle load

26000 kg

Rated power

250 kW/ 2100 rpm

Rated torque

1425 N.m/ 1200-1500 rpm

Max. traveling speed

83 km/h

Min.turning radius

11 m

Min.turning radius of boom head

14 m

Drive train

8 × 4

Min. ground clearance

295 mm

Approach angle


Departure angle


Max. Gradeability


Fuel consumption per 100km

≤ 43 L

Temperature range

-20 ℃ - + 40 ℃

Min.lifting radius

3 m

Tail swing radius of superstructure

4.065 m

Boom section


Boom shape


Max. lifting moment-Base boom

2009 kN·m

Max. lifting moment-Full-extend boom

1050.6 kN·m

Max. lifting moment-Full-extend boom+jib

521.1 kN·m

Length-Base boom

11.3 m

Length-Full-extend boom

43.5 m

Length-Full-extend boom+jib

59.5 m

Outrigger span(Longitudinal/Transversal)

6 × 7.2 m

Jib offset

0 ° 15 ° 30 °

Max. single rope lifting speed of main winch (no load)

125 m/min

Max. single rope lifting speed of auxiliary

125 m/min

Full extend/retract time of boom

100 / 120 s

Full raise/lower time of boom

60 / 80 s

Swing speed

0~2 r/min

HVAC in up cab


HVAC in low cab
