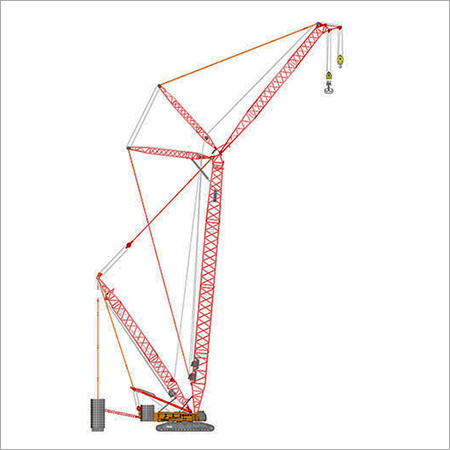

500 Ton Crawler Crane

500 Ton Crawler Crane

Product Details:

  • Feature Hydraulic Crane
  • Crane Type Other Cranes
  • Application Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Hydraulic Crane
  • Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Other Cranes

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior Performance

Strong Power Supply

The 500 ton crawler crane adopts cummins QSX15-C600 engine with rated power of 447kW@1800rpm and maximum output torque of 2542Nm@1400rpm is powerful and energy-saving, complying with Europe and American non-road third-stage emission standards.

Powerful Lifting Capacity

The maximum lifting capacity of boom is 500t/6m, maximum lifting torque is 3000t·m; with multifunctional boom system consisted of main boom, luffing jib, fixed jib, superlift, a total of 7 operating conditions are available for your needs.

Wind Turbine Generator Lifting

Fixed jib operating condition is suitable for the lifting of wind turbine generators, which can provide most optimized mounting angle and range for lifting the large wind turbine blade, and meet the installation requirement of 2.0MW and below WTGs.

Safety and Reliability

Safe Control System

Switch between the operation and installation modes is convenient and reliable, and the crane's functions including real-time display of machine ground pressure and levelness, off-line stop, electrical emergency control, lightning protection, automatic walk switches, closed-circuit monitoring ensure your safety.

Reliable Function Guarantee

Core components from world well-known brands; sufficient safety margin in structural design; the control system runs stably even in extreme cold / hot weather, and high altitude regions.

Advanced Center Gravity Control

Real-time monitoring of the machine's center of gravity enables the 500 ton crawler crane run stably at its best state and the machine's safety during lifting operation and traveling with boom system.

Easy to Transport

Optimized Transportation

With modular design, the crawler crane can be easily transported with max.transport weight of less than 50t, transport width less than 3m, and transport height less than 3.2m. Boom system can be transported wholly.

Self-assembly and Disassembly

Track frame can be assembled and disassembled by itself, and quickly erected by simply pressing one button; the movable pump station is used to facilitate the assembly and disassembly.

Boom==Max. rated lifting capacity

500(6m working radius)t

Boom==Max. lifting moment

3000 t*m

Boom==Boom length


Boom==Boom luffing angle


Combined boom==Combined boom length


Boom+Fixed jib==Fixed jib length


Boom+Luffing jib==Luffing jib length


Boom+Luffing jib==Jib luffing angle


Boom+Superlift==Max. rated lifting capacity

500(12m working radius)t

Boom+Superlift==Max. lifting moment

6160 t*m

Boom+Superlift==Boom length


Luffing Jib+Superlift==Luffing jib length


Luffing Jib+Superlift==Full-extend (boom+jib)


Rope speed of main/auxiliary winches


Rope speed of main/auxiliary luffing winches

(0-60)x2 / 0-120m/min

Rope speed of superlift luffing winch


Swing speed

0-1 (without load)rpm

Travel speed

0-1.2/0-0.35 (high/low speed)km/h


30% (with basic boom and with cab faced forwards)

Rated output power

447/1800 KW/rpm

Crane weight



180(without superlift)/140 (with superlift)+40(central)+250(superlift) t

Max. transport weight of single part

48.8 / 64.6 (without /with mast and winch)t

Max.transport dimensions

13290x3000x3200 mm

Average ground pressure

0.19 MPa
