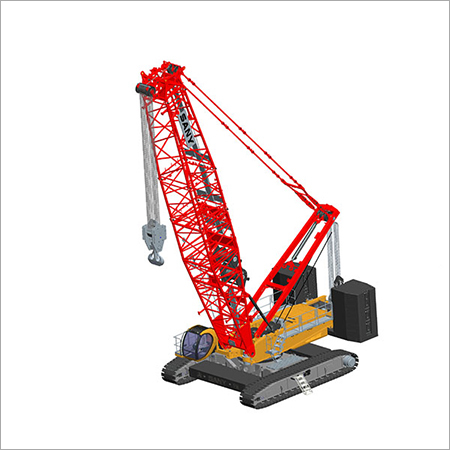

260 Ton Crawler Crane

260 Ton Crawler Crane

Product Details:

  • Feature Hydraulic Crane
  • Crane Type Other Cranes
  • Application Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Other Cranes
  • Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Hydraulic Crane

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior Performance

Powerful Lifting Capacity

The 260 ton crawler crane adopts tier 3 engine with rated power of 242kw (324hp)@2100rpm, rated torque of 1424Nm@1500rpm; the maximum lifting capacity of boom is 1470.4txm (183.8t × 8m) and the longest boom length is 86m, maximum lifting capacity of luffing jib is 1125txm (62.5t × 18m) and the longest boom combination is 62 m+63m.

New Lift Operating Condition Design

The operating condition of 20m boom + 12m heavy fixed jib is adopted to meet the lifting requirement of shield machine used for subway construction and similar products. The auxiliary hook is larger enough to lift the heavy object up to 96t. The load moment limiter indicator can dynamically reflect the loading capacities of main and auxiliary hooks.

Efficient Self-Handling Technology

The mast can be easily lifted, and the clutch traction winch reeving operation can be done simply by pressing one button; it can support the machine self-disassembly; the quick-change rope connectors and winch rope head can be used.

Safety and Reliability

Safe Control System

Switch between the operation and installation modes ensures the safety, and the crane's functions including real-time display of machine levelness, off-line stop, emergency electric control, lightning protection, and closed-circuit monitoring are highly convenient and reliable.

Reliable Function Guarantee

Sufficient safety margin in structural and mechanical design; the control system runs stably even in extreme cold / hot weather, high altitude and sandy regions.

Large Chassis Design

The large chassis with a 6.7m track gauge ensures excellent stability within 360° rotation; powerful traveling traction and stability maximize the 260 ton crawler crane's advantages to the most.

Reliable Transmission System

Advanced hydraulic components and load feedback control technology with independent property rights can ensure the stable and reliable operation of hydraulic system.

High Return & Low Cost

Global Transportation

The transport weight of main machine is limited within 45 tons, the transport width is less than 3m and the transport height is less than 3.2m, thus saving the transport cost significantly.

Convenient Maintenance

It takes no more than 10min/person to adjust, 30min/person for daily maintenance and 2h/person to repair the machine. GPS remote monitoring system is optional for maintenance and management.

Large Fuel Tank Design

The fuel tank capacity is 1050L, which is greatly increased compared with the old models (400L), avoiding refueling frequency.

Wide Adaptability

The 260 ton crawler crane complies with the non-road Stage III emission standards of Europe and America, and can be widely used in boat building, subway construction, metallurgy and infrastructure.

Technical Specifications

Boom==Max. rated lifting capacity


Boom==Max. lifting moment


Boom==Boom length


Boom==Boom luffing angle


Boom+Fixed jib==Full-extend (boom+jib)


Boom+Fixed jib==Jib offset angle

10o 30o

Boom+Luffing jib==Max. lifting moment


Boom+Luffing jib==Full-extend (boom+jib)


Boom+Luffing jib==Boom luffing angle


Rope speed of main/auxiliary winches


Rope speed of main/auxiliary luffing winches


Swing speed


Travel speed




Rated output power

242 /2100kW/rpm

Max. transport weight of single part

45t (with boom and jib lifting winches)

Max.transport dimensions


Average ground pressure
