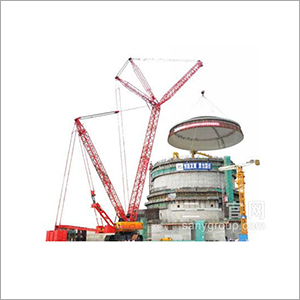

1600 Ton Crawler Crane

1600 Ton Crawler Crane

Product Details:

  • Feature Hydraulic Crane
  • Crane Type Other Cranes
  • Application Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Hydraulic Crane
  • Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Other Cranes

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior Performance

Powerful Lifting Capacity

The maximum lifting weight of the crawler crane is 1600t/11m, the maximum lifting torque is 25000t·m, the longest boom is 156m and the longest luffing jib combination is 108m +108m.

New Materials

The aluminum alloy pedals are employed for boom system and platform, greatly reducing the boom weight and improving the load capacity.

Generator Group

220V generator group is equipped to supply the power to the air conditioning in the cab and overall crane lighting system.

Easy Transportation

High-strength Plate

The main structure adopts 960MPa high-strength steel plate to reduce the transport weight of single part; the pendant bar is made of 1100MPa high-strength steel plate to reduce the section size and the weight significantly.

Standard Container Power Unit

All power systems, control systems, hydraulic systems and cab are installed in the standard container, the 1600 ton crawler crane is compact in structure, easy to repair, and convenient to transport.

Safe and Intelligent Control

Safe Control System

Switch between two operation modes of working and assembly is convenient and reliable. The crawler crane features a complete safety system including real-time level display, electrical emergency control, anti-lightning protection, automatically walk switches, and CCTV monitoring function. 250G storage hard drive can also be equipped to save the 120h video data (with a large wide-angle camera).

Wireless Remote Control

The installation of undercarriage base, beam, track frame, the front and rear platforms of superstructure, A-frame, winch mechanism and superlift mast can be remotely controlled.

New Technology Application

Lift the superlift counterweight based on accurate calculation. It also gives unitization information before the superlift counterweight being lifted from the ground.

High Return & Low Cost

Self-assembly and Disassembly

The track frame can self-assemble and the whole machine can stand erect itself for quick assembly and disassembly, which significantly saves your time and operation cost.

Convenient Maintenance

It takes no more than 10min/person to adjust, 30min/person for daily maintenance, 2h/person to repair. GPS remote monitoring system is optional for maintenance and management.

Boom+Luffing jib==Boom length


Boom+Luffing jib==Luffing jib length


Boom+Luffing jib==Full-extend (boom+jib)


Boom+Superlift==Max. rated lifting capacity


Boom+Superlift==Max. lifting moment

25000 t*m

Boom+Superlift==Boom length

54-108 m

Boom+Superlift==Superlift mast length


Rope speed of main/auxiliary winches

121/76.6 m/min

Rope speed of main/auxiliary luffing winches

58.3 / 85.2 m/min

Rope speed of superlift luffing winch

98.1 m/min

Swing speed

0-0.8/0-0.41 rpm

Travel speed

1.02 km/h



Rated output power

746/1800 KW/rpm

Rated torque

4629/1300 Nm/rpm

Crane weight

1169 (Basic boom/jib, with 1600t hook)t

Max. transport weight of single part


Max.transport dimensions


Average ground pressure

0.255 (Basic boom/jib, with 1600t hook)Mpa
