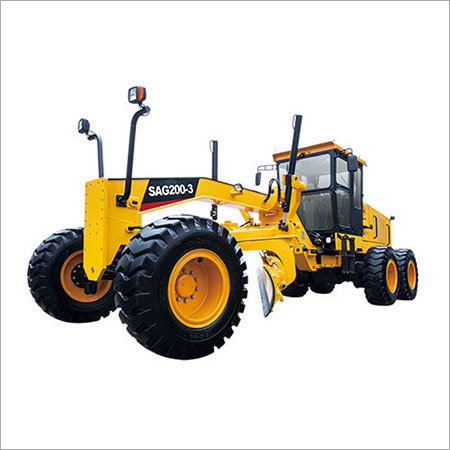

160 HP Motor Grader

Request to Call Back Send Inquiry

160 HP Motor Grader Price And Quantity

Payment Terms Delivery Point (DP) Letter of Credit (L/C) Western Union Telegraphic Transfer (T/T) Days after Acceptance (DA)
Delivery Time 7-20 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
Main Export Market(s) Australia North America Eastern Europe Middle East Western Europe Africa Central America South America Asia
Main Domestic Market All India
Certifications CE, ISO, Gost, EPA(USA), CCC

160 HP Motor Grader

Benefits & Features

Tiptronic, energy saving and reliable

ZF electro-hydraulic automatic transmission makes the 160 HP motor grader comfortable and ease of operation.

Tier III engine, environmental friendly and reliable

The energy efficient mode saves energy consumption by 10%, equipped with German Bosch high pressure common rail oil injection system.

Master of moving snow, floating snow removal and rapid road sweeping

The first snow moving functionality provided by a floating moldboard is professional and efficient.
A rear mounted roller brush sweeps snow off the road.

Designed for heavy duty work, abrasion-resistant, and adjustable

The 160 HP motor grader adopts customized Meichi heavy duty rear axles, SKF bearings, and strengthened chain to challenge heavy duty jobs.
The main and side blades are thickened and a U-shape rail is applied to prolong the product service life.

Technical Specifications

Engine model	Cummins QSB4.5-C160
Emissions	Tier III
Rated power/speed	119/2200 kW/rpm
Max.torque/speed	949/1500 N.m/rpm
Forward/Reverse gears	6/3
Speed forward	5/9/11/18/26/41 km/h
Speed reverse	5/11/26 km/h
Max.hydraulic pressure	18 Mpa
Transmission system pressure	1.6-1.8 Mpa
Max. front wheel turning angle	±50°
Max.front wheel tilt angle	±17°
Max.oscillation angle of front axle	±16°
Max.oscillation angle of tandem box	±15°
Min.turning radius	7.3 m
Rear axle ground clearance	400 mm
Moldboard width x Arc radius	3660×620 mm
Max.blade position angle	±90°
Blade==Max.lift above ground	480 mm
Blade==Max.depth of cut	715 mm
Blade tip range	27°-72°
Circle rotation	360°
Max.penetrating angle	65°
Max.scarifying depth	395 mm
Ripper==Max.lift above ground	577 mm
Max.departure angle	17°
Ripper==Max.working width	2300 mm
Dozer==Max.depth of cut	160 mm
Dozer==Max.lift above ground	590 mm
Dozer==Max.working width	2440 mm
Operating weight (Standard)	15200 kg
Max.operating weight	15950 kg
Dimensions (Standard)	8950×2540×3220 mm
Dimensions	10730×2540×3220 mm
