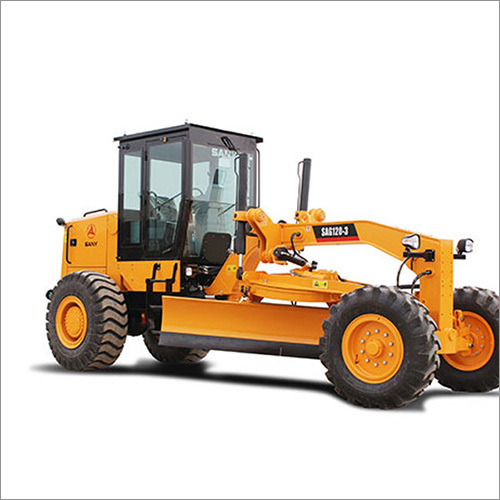

120 HP Motor Grader

Request to Call Back Send Inquiry

120 HP Motor Grader Price And Quantity

Payment Terms Delivery Point (DP) Letter of Credit (L/C) Telegraphic Transfer (T/T) Western Union Days after Acceptance (DA)
Delivery Time 7-20 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
Main Export Market(s) Australia North America Eastern Europe Middle East Western Europe Africa Central America South America Asia
Main Domestic Market All India
Certifications CE, ISO, Gost, EPA(USA), CCC

120 HP Motor Grader

Powerful Transmission

The 120 HP motor grader combines advantages of both hydraulic and mechanical transmission
Rear axle applies no-spin differential lock technology, enhancing synchronization
Large torque rotary motor and worm-gear case with overload protection provides the blade maximum power in ground leveling

Smart Operations

Automatic gears shift, easy to operate and highly efficient
Speed range and initial gear can be set by operator, making operating extremely easy
Intelligent reversing technology reduces the time to change direction

Safety and Comfort

The 120 HP motor grader features step-less speed change, low gear-shifting impact and comfortable operation
Joystick requires less exertion of physical force and less distance, which is able to realize synchronous actions
Fail proof triple braking system (travel braking, park braking and hydraulic system assistance braking) ensures safety and reliability

Convenient Maintenance

Wider cabin doors on both sides give way to more accessible maintenance
Electronic devices and filters are centrally positioned for convenient maintenance

Engine manufacturer	Cummins
Rated power	93/2200 kW/rpm
Length-between front axle and rear axle	5000 mm
Tire front	13.0-24 (16PR) / rear 20.5-25 (16PR)
Hydraulic system – tank	150 L
Fuel capacity	150 L
Engine model	4BTAA3.9-C125
Emissions	Tier 2
Max.torque/speed	480 N.m
Forward/Reverse gears	5 / 5
Speed forward	4/7/12/20/30 km/h
Speed reverse	4/7/12/20/30 km/h
Max. front wheel turning angle	45° / 45°
Max.front wheel tilt angle	17° / 17°
Max.oscillation angle of front axle	22° / 22°
Max.oscillation angle of tandem box	15° / 15°
Min.turning radius	6.2 mm
Moldboard width×Arc radius	3050 mm
Max.blade position angle	56°
Blade==Max.lift above ground	460 mm
Circle rotation	360°
Operating weight (Standard)	8390 kg
Dimensions (Standard)	6810×2280×3310 mm
