150 Ton Crawler Crane

150 Ton Crawler Crane

Product Details:

  • Feature Hydraulic Crane
  • Crane Type Other Cranes
  • Application Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Hydraulic Crane
  • Other Cranes

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

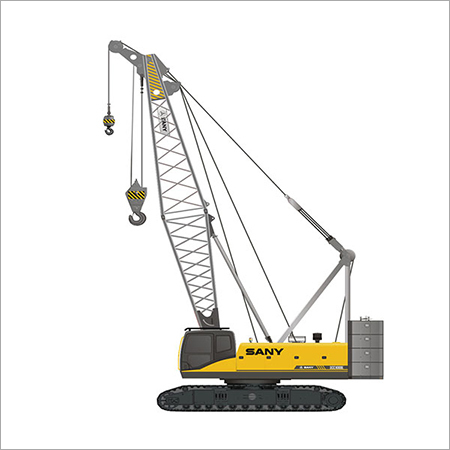

150 Ton Crawler Crane

Superior performance Strong power supply

The Tier 3 emission engine has 242KW power and is powerful and low-carbon.

Powerful lifting capacity

The 150 ton crawler crane's main boom features a maximum lifting capacity of 150t, a maximum lifting moment of 668t?m, and a maximum length is 80m. For the fixed jib, the maximum lifting capacity is 30t, and the longest combination is 65m+31m.

Excellent operation

Features on the SCC1500E such as load sensing, ultimate load regulation and electrohydraulic proportional dead slow control help make each motion controlled and stable, improving performance.

Easy to transport

Global transport standard

The basic crane is a 32.8t in transport weight and 3m in transport breadth, saving your transportation cost.

Economical transportation mode

Transported by 5 vehicles (80m boom+31m jib).

High efficiency

Efficient self-assembly

Capable of self-assembling the basic crane, crawler frame, central ballast, counterweight and boom system. The entire self-assembly time is less than 7h.

Calibration-free technology

When changing working conditions, the SCC1500E does not require recalibration. This makes construction more efficient and more convenient.

Safety and reliability

Safe control system

The 150 ton crawler crane has operation and installation modes, equipped with an electronic level meter for real-time display. Functions including off-line stop, emergency electric control, lightning protection, automatic reversing while traveling and closed-circuit monitoring, and complete safety and monitoring system ensure your safety.

Reliable function guarantee

The key parts are all products of well-known brands: as such, their structure design and mechanism design are safe and reliable. The control system can run steadily in nearly any environment: from arctic, alpine, high-temperature, highland and to even harsh sandstorm environments.

Diverse application

Wide adaptability

Comply with the certification of CE, North America, Australia, Russia and Taiwan, and stage 3 off-road emission standards in Europe and America. Widely used in shipbuilding, subway, thermal power, municipal engineering, and metallurgy.

  • Special Function Application (optional)
  • The main and auxiliary hooks operate simultaneously.
  • S of slewing area limiting technology.
  • Limiting technology of boom system working area.
  • More Optional Functions
  • Optional luffing jib working condition.
  • Optional double-free fall.
  • Optional counterweight self-assembly.
  • Optional fuel and hydraulic oil heating device.
  • Optional high-pressure alarm system.
  • Optional automatic forward function.

Technical specification

Boom==Max. rated lifting capacity


Boom==Max. lifting moment


Boom==Boom length


Boom==Boom luffing angle


Boom+Fixed jib==Max. Rated lifting capacity


Boom+Fixed jib==Fixed jib length


Boom+Fixed jib==Full-extend (boom+jib)


Boom+Fixed jib==Jib offset angle

15o / 30o

Rope speed of main/auxiliary winches

0-140 m/min

Swing speed

0-2.2 rpm

Travel speed

0-1.3 km/h



Rated output power

251/2200 kW/rpm

Max. transport weight of single part


Max.transport dimensions


Average ground pressure
