200 kN.m Torque Piling Rig

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

200 kN.m Torque Piling Rig Price And Quantity

Minimum Order Quantity 1 Piece

200 kN.m Torque Piling Rig Trade Information

Payment Terms Days after Acceptance (DA) Delivery Point (DP) Letter of Credit (L/C) Telegraphic Transfer (T/T) Western Union
Delivery Time 7-20 Days
Sample Available Yes
Sample Policy Contact us for information regarding our sample policy
Packaging Details Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
Main Export Market(s) North America Eastern Europe Middle East Africa Western Europe Central America Australia South America Asia
Main Domestic Market All India
Certifications CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior Performance

Classic Model

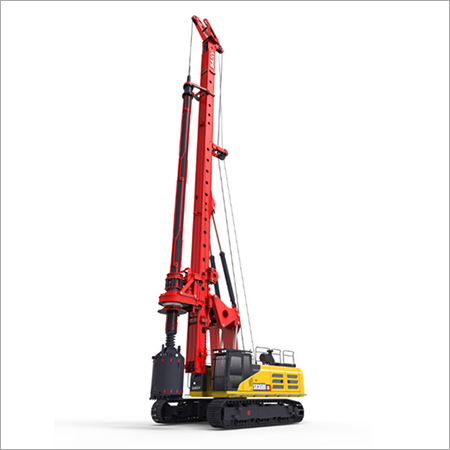

With 200 kN.m Torque, piling rig SR200C is mainly used for soil layer with high construction efficiency and ease of transportation.

High Efficiency

The first chassis equipped with Kawasaki load control system is in high efficiency and energy saving; Main winch confluence technology; the maximum speed can reach 72m/min; The construction efficiency is increased by 10% compared with competitors.

Flexibility

Spacious cab; comfortable seat; flexible joysticks and intelligent control system

Low Cost

Low Fuel Consumption

Engine output power intelligently matches the needs of system, fuel consumption is decreased by 5-10%.

Easy to Transport

With low transport weight, piling rig SR200C can realize transportion as a whole which facilitates assembly and disassembly.

Convenient Service

Short servicing time provides high profit.

High Reliability

Fine Production

Full-automatic production line and robot welding ensure high quality; All the key components are jointly designed by world famous manufacturers and are customized.

Rigorous Testing

100% nondestructive test of key components ensures high quality, stability and excellent performance of the machine.

Overall height	20000mm
Operating weight	62t
Max. pile diameter	1800mm
Max. pile depth (friction bar)	59m
Max. pile depth (interlocking bar)	47m
Max. output torque	200kN.m
Rotation speed	7～30rpm
Crowd force	170kN
Stroke	4300mm
Main winch - line pull	200kN
Main winch - rope diameter	28mm
Main winch - max. line speed	72m/min
Auxiliary winch - line pull	76kN
Auxiliary winch - rope diameter	20mm
Auxiliary winch - max. line speed	79m/min
Forward/Backward	5°
Lateral	±5°
Chassis model	SY310RC
Chassis length	6790mm
Extended width	4000mm
Track shoe width	700mm
Swing radius (backside)	4000mm
Transport width	3000mm
Transport height	3370mm
Base engine	ISUZU AA-6HK1XQP
Engine power	183.9kw@2000rpm
Emission standard	EU stage II/EPA Tier 2
Fuel	Diesel oil (JIS Type 2)
No. of cylinder-bore x stroke	6 - 112 x 149
Engine displacement	7.79 L
