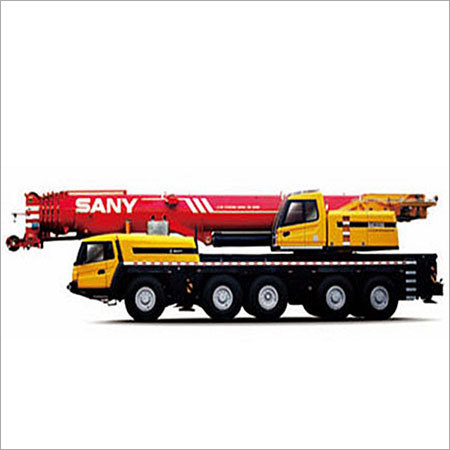

180 Ton All Terrain Crane

180 Ton All Terrain Crane

Product Details:

  • Feature Hydraulic Crane
  • Crane Type Other Cranes
  • Application Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Click to view more

Price And Quantity

  • 1 Piece

Product Specifications

  • Other Cranes
  • Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
  • Hydraulic Crane

Trade Information

  • Days after Acceptance (DA), Delivery Point (DP), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union
  • 7-20 Days
  • Yes
  • Contact us for information regarding our sample policy
  • Flat Rack Container, Fixing Product ON FR, Lifting Machine On Board, RORO Shipment
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • CE, ISO, Gost, EPA(USA), CCC

Product Description

Superior Performance

Powerful Lifting Capacity

The longest boom length of 97m and lifting height of 97.5m, max.lifting capacity of 180t enable the 180 ton all terrain crane with super strong lifting capacity. The six-section telescopic boom is made of fine grain high-strength steel with U-shaped section.

0°~ 40°Automatical infinite variable luffing jib is applied to ensure convenient switch over between all operating conditions with high efficiency.

Efficient Hydraulic Control Technology

Self-developed dual-pump converging/diversion main valve is used. Converging flow of the single-action dual-pump can be up to 520L/min, ensuring fast and efficient operation. Combined-action dual-pump diversion system is applied to ensure stable control and operation with independent oil supply.

Electric proportional variable displacement piston pump is used to ensure accurate flow control which is efficient and energy saving.

Excellent Operation

The 180 ton all terrain crane's max.traveling speed is up to 81km/h, max.gradeability is 58%; all axles are steering axles and axles 1, 2, 4 and 5 are drive axles, wheels differential locks, the bar feedback hydraulic power steering system and the electrohydraulic control steering system are adopted to ensure easy steering and flexible operation.

Safety and Stability

Excellent & Stable Chassis

The use of innovative 5-axle chassis design and multi braking modes provide more reliable traveling performance for chassis.

With tipping early-warning technology, highly stable overall operation and safety can be achieved.

Intelligent Electronic Control Technology

The 180 ton all terrain crane adopts internationally advanced distributed integration bus data communication network and configuration of complete set of sensing elements, which can achieve timely feedback of data information and monitor the overall working status in real-time. The human-computer interaction interface is used to meet customer's individual requirements.

Max. lifting capacity


Overall length

15530 mm

Overall width

3000 mm

Overall height

4000 mm

Axle distance-1,2

2750 mm

Axle distance-2,3

1650 mm

Axle distance-3,4

2490 mm

Axle distance -4, 5

1650 mm

Overall weight

60000 kg

Front axle load

12000 kg

Rear axle load

12000 kg

Rated power

390 kW/1800 rpm

Rated torque

2400 N.m/ 1100 rpm

Max. traveling speed

81 km/h

Min.turning radius

10 m

Min.turning radius of boom head

11 m

Drive train

10 — 8

Min. ground clearance

325 mm

Approach angle

20 °

Departure angle

17 °

Max. gradeability


Fuel consumption per 100km

 72 L

Temperature range

20  ~ + 40

Min.lifting radius

3 m

Tail swing radius of superstructure

4.75 m

Boom section


Boom shape


Max. lifting moment-Base boom

6320 kN·m

Max. lifting moment-Full-extend boom

3000 kN·m

Max. lifting moment-Full-extend boom+jib

575 kN·m

Length-Base boom

13.5 m

Length-Full-extend boom

62 m

Length-Full-extend boom+jib

97 m

Outrigger span(Longitudinal/Transversal)

9.0 — 8.5 m

Jib offset


Max. single rope lifting speed of main winch(no load)

130 m/min

Max. single rope lifting speed of auxiliary winch(no load)

130 m/min

Full extend/retract time of boom

550 / 550 s

Full raise/lower time of boom

60 / 90 s

Swing speed

1.8 r/min

HVAC in up cab

Cooling and Heating

HVAC in low cab

Cooling and Heating
